Violent supercells with giant hail pound the Northern Rivers: Saturday 17th December 2005
Report compiled by Michael Bath, Dave Ellem and Rodney Wallbridge

Chase account by Michael Bath. If you have any photos or video of this event, please email.
See also the Striated Rotating Classic Supercell near Taree chase report.

The GFS forecast and analysis really doesn't reflect the instability that existed over the Northern Rivers on this day, with the moisture profile appearing quite wrong. However, it does show the ideal shear for supercells and destabilising atmosphere, together with a good 850hPa cap. The Mesolaps model forecast the moisture better, but it isn't until seeing the Moree sounding that the true potential is obvious: deep moisture to 600hpa with dry air aloft, and strong shear in the mid and upper levels. The Moree sounding is fairly indicative of what the Northern Rivers would have been like during the afternoon. In fact, the replotted sounding (see charts below) with 32/21 - the temperature / dew point just prior to the storm hitting Casino - gives CAPE over 4000 and LI of -10 ! The North Coast also had the advantage of surface northerlies. Storms were expected to move east today, with supercells likely to head ENE or NE. The WNW jet was ideal to keep anvil rain away from updrafts - and chasers !

The morning was completely sunny in the local area. However, radar showed showers and storms creeping into the region from the SW and a lot of strong storms in the Hunter. The activity was initially not expected to continue, however the line did persist, most likely with the first trough of the day. Weak looking cumulonimbus were observed from late morning to the SW, with other cumulus developing in western parts of the region.

Dave and I headed over to Tregeagle about 1230 when the cells were a bit closer. The storm was not impressive at first but that picture very quickly changed.

Updrafts pushed higher and a rippled rain free base formed on the northern side quite close to us, and heavy precipitation fell on the SW flank.

This storm was now on the move and with CG lightning now hitting nearby it was time to move. This cell underwent and amazing change in the 10 minutes it took us to drive to Wollongbar. From a rippled rain free base it had evolved into a rotating wall cloud with powerful updrafts and intense precipitation.

Ray Mullens at Goonellabah captured some great shots of this structure and noted the very obvious rotation.

The storm looked like it would hit Ballina so we raced SE along the Bruxner Highway to intercept. Just as we entered a heavy rain area on the Ballina cutting, we heard reports of large hail on the UHF which we soon found out was at Wardell. We continued on to East Ballina and stopped by the Richmond River as the storm moved out to sea - it was just too quick for us after having to contend with Ballina traffic! But the dramatic scene was just perfect - very high updrafts, CG lightning out the back and the colours of the water.

Someone stopped to say hello and reported that small hail fell at West Ballina so we must have just missed it. We spoke to Rodney who was approaching Parrots Nest south of Lismore. He reported new storms in the west of the region and we could see some of that activity from Ballina. Ray also provided a radar update and mentioned a strong storm in the Tenterfield area heading into the Northern Rivers, as well as other activity along the Richmond Range.

We moved to a spot near the intersection of the Pacific Highway and Teven Road just west of Ballina. The storm that passed through Ballina rapidly died and was soon just an anvil. Other local activity tried to get going but just wouldn't. We watched for a while as a tall but narrow looking storm with nice updraft - downdraft separation tried to get going to our west (it was in fact near Casino).

Anvils spreading to the ESE further south of this storm got our attention. The one near Casino seemed to be dying so we took off south along the Pacific Highway. We fuelled up at Wardell and it was pretty obvious a strong storm was organising to our WSW. We got through Broadwater then 10 ks west to the Wyrallah Road.

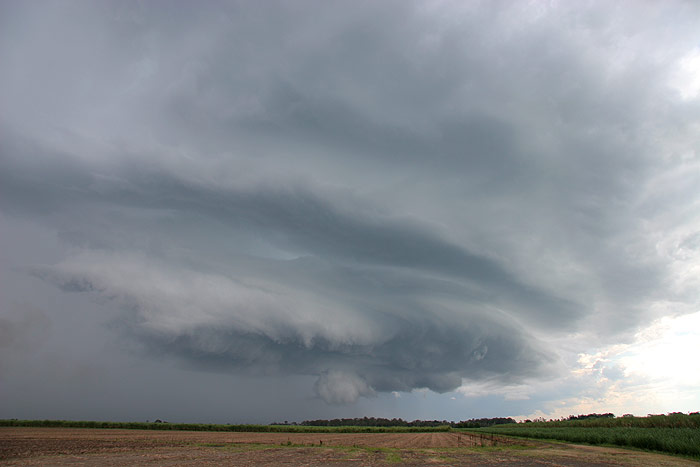

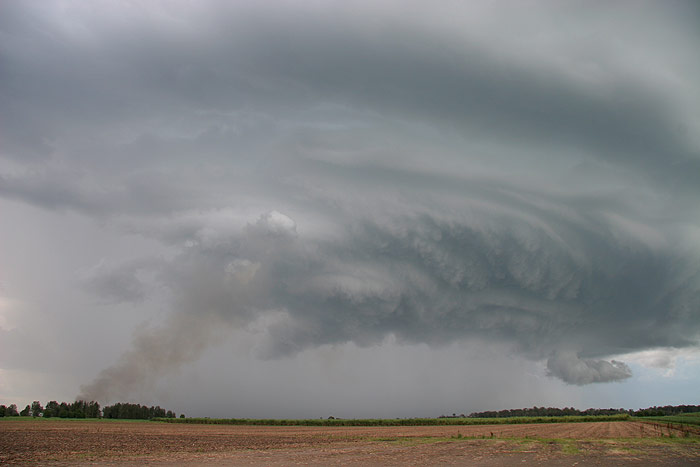

A shelf cloud feature had already formed on this very large storm's NE flank. Watching this evolve was breathtaking. There was no hint of it becoming outflow dominant, with smoke from nearby fire illustrating that nicely. Lightning was regular and the thunder was just beautiful, in fact it was a case of "watching lightning crack over cane fields" (or words to that effect from a well know Aussie pop song). The towers were pushing higher and higher with a thick anvil spreading off to the ESE.

Rodney was watching this beast from Parrots Nest so the cell was very well documented. He even managed to get one of those elusive "smokenados".

As the storm got closer its overall structure was very much of a supercell. We had this amazing storm to watch but had to move as it was now getting a little too close. On top of that, we could see the really big storm of the day coming into view to the WNW.....

As soon as we left, we got stuck behind a cane truck going 40km/h on a one lane road! Stuff that ! We chose to stop a couple of times and let the truck get ahead. We continued on but I knew this storm was a beast by the regular groans of excitement by Dave : )

We got back into Broadwater and noted a brief funnel from the storm which was really only about 3ks from us. We headed north, leaving the storm behind. Very large drops of rain spatted on the windscreen.

John Bath in Ballina captured a few shots as this storm came over town.

The main event was now coming into better view. The forward anvil structure was some of the most powerful looking we have witnessed - so high topped, thick and full of knuckles. Striated 'donuts' were also visible overhead during the drive. We were soon back at the Pacific Highway, Teven Road spot.

The scene was almost unbelievable - the shelf cloud structure to the south of the storm we had just let pass, and this enormous supercell to the west ! Geeez ! We had no time to wait and had to keep heading north.

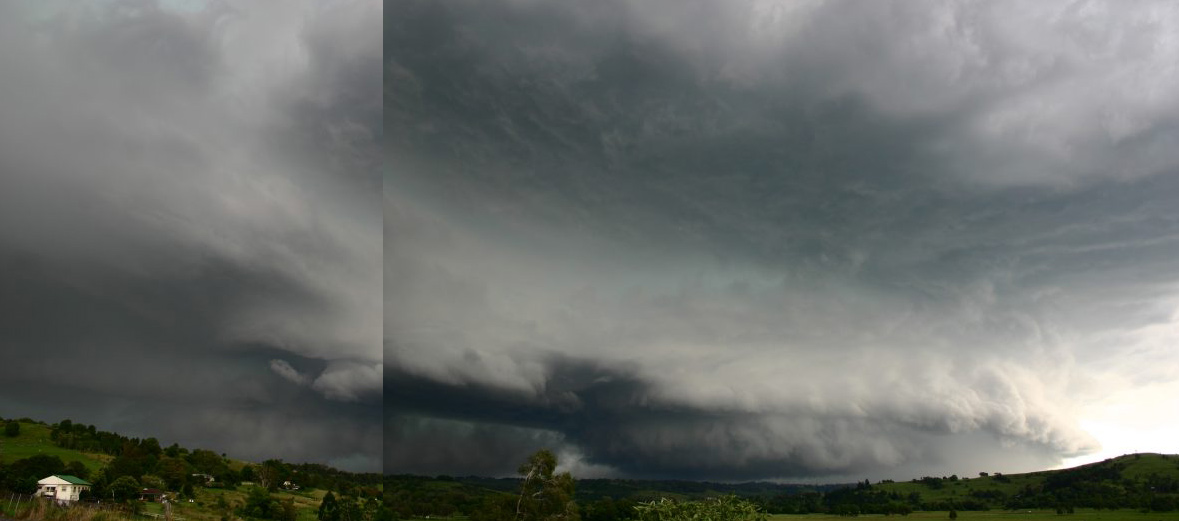

Meanwhile, Rodney was perfectly positioned ahead of the supercell after moving through Lismore and onto the Bangalow Road. He captured these amazing shots of the base structure from just west of Lismore, north of Lismore and then at Bexhill.

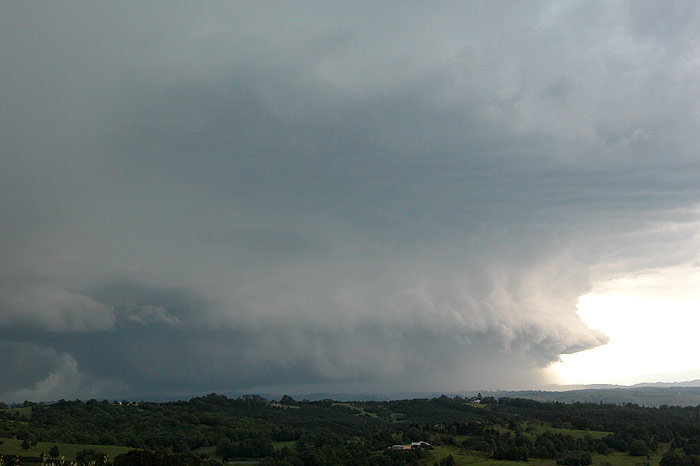

Owen Ellem was also photographing the scene from his home at Wollongbar, including one photo of the earlier supercell.

Dave and I headed along the Teven Road then back onto the Pacific Highway at Tintenbar, avoiding the Ballina congestion. The structure of this massive storm continued to amaze us. We had not seen anything like it since the HP Supercell with Mothership feature of 30th March 2003. We stopped briefly at a couple of spots and continued to video before getting to Knockrow for a better view. Awesome !!!! There was a constant background noise from the thunder.

We had to keep heading north to ensure we would not cop any severe weather, though it was noted the BoM had issued a severe thunderstorm advice and mentioned this cell was "particularly dangerous". It looked like the storm was passing over our homes at McLeans Ridges and Wollongbar, but fortunately only heavy rain and some smallish hail fell there. The main core moved just west and to the north of Lismore.

The greenage above the shelf cloud structure was unreal but we were not to see it for long. Dave snapped a couple of pics at Bangalow, but just as we arrived at Saint Helena, stratus covered the sky as it raced into this storm. It was quite weird, knowing the huge storm was just to the SW, but not being able to see much apart from the precipitation cascades and constant CG lightning.

We decided to head further north to one of the Pacific Highway overpasses in case we got clobbered. It was a lucky move as these freaky clear air CGs starting raining down right in front of us ! Bang, crack, pulsating bolts, it was so amazing, driving near the Byron Bay turn off and all these bolts happening - and captured on video.

It was really hard to know what to do now. Ray gave us a radar update saying the storm would go over Byron Bay. Good- we were enough north of it now, but was it firing up to our NW as well ? We stopped on the Brunswick Heads turn off and waited. Extremely heavy rain hit and then John Graham phoned from Bangalow with the tink tink tink sound of hail pelting his car. It appeared the storm was now just to our southeast, so we headed back south. Violent rear flank downdraft winds ripped through the area just south of Brunswick Heads. Another incredible scene - the air was now almost completely clear at our location and to the west and southwest, yet the winds were gale force with lightning !

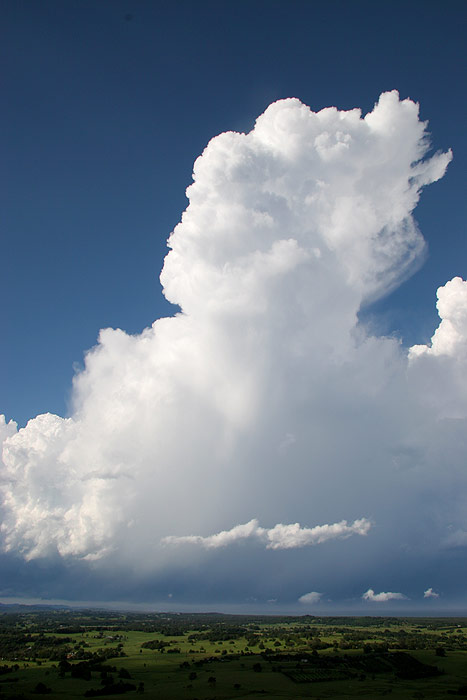

We went back up the hill to Saint Helena to watch the activity now out to sea and another cell that had popped up just to the southwest. The height of the supercell and new storm development was breathtaking. They were easily 15km high and the rear flank lightning was constant. The new nearby storm developed a nice base and started to fire out some CGs too.

After about 20 minutes I decided to phone Rodney and find out where he got himself to in all this action. Hello, where are you ? Saint Helena... Oh, so are we, where abouts? at the lookout.... hmmmm - sure enough just 50 metres away up the road and we hadn't spotted each other !

We all enjoyed the rest of the show and talked excitedly about what had just happened and what an amazing day it had been.

Western parts of the Northern Rivers now looked dried out so we decided to head home about 6pm. One final small cell got going and dumped torrential rain on us for about one minute near Knockrow.

Dave went home just in time for a family BBQ at Wollongbar, and Rodney came back to my place at McLeans Ridges. My wife Alison had saved some hail for us to see. The largest was 3cm in diameter, but most of it was half that size.

The storm action was not over. An isolated cell developed to the NW about 100km away just over the border into Queensland. This multicell persisted into sunset and headed ESE, crossing the border near Murwillumbah. The sunset structure and colours were incredible. It then evolved into a rotating LP storm as the light faded, spitting out faint updraft lightning. This cell collapsed completely by about 8.45pm.

Neil Pennell from Kalbar in SE QLD took this photo of the same storm above, but from the northern side at 7.06pm:

It was interesting to note that the storm pushed up fresh updrafts at the back continuously for about 1.5 hours, until the corkscrew structure commenced, at which point no new updrafts formed and just the one rotating one persisted until the storm's demise.


The storm caused extensive damage to homes at North Casino - in particular from giant wind driven hail. The SES has responded to over 230 calls for assistance. Modanville and Tullera just north of Lismore also received extensive wind damage to trees, property and farms. Winds are estimated to have reached at least 150km/h. These photos were taken mainly along the Dunoon Road.

Claudia Halstead from Casino took these photos during and just after the storm passed:

The Northern Star newspaper obtained a photo of the giant hail that fell at North Casino.

Halden Boyd of Evans Head reported that the Jetstar flight into Ballina was struck by lightning about 3.55pm. He saw the bolt hit the aircraft and exit the wing tips of the low flying jet.

The Casino Airport observations of wind gusts and direction are interesting, and clearly show the mesocyclone passing over the AWS.

15:34  44km/h  SSE
15:35  63km/h  SSW
15:36  95km/h  SSW
15:40  109km/h  W
15:43  109km/h  N
15:44  109km/h  NE
15:46  109km/h  ESE
15:47  67km/h  E

Other Photos

Bec Van der Waal took these photos at Kingscliff of the main storm crossing the coast, and later the sunset LP storm structure:


From Bureau of Meteorology

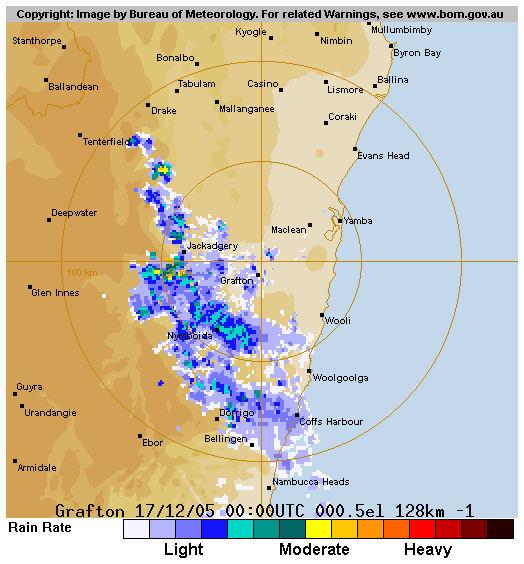

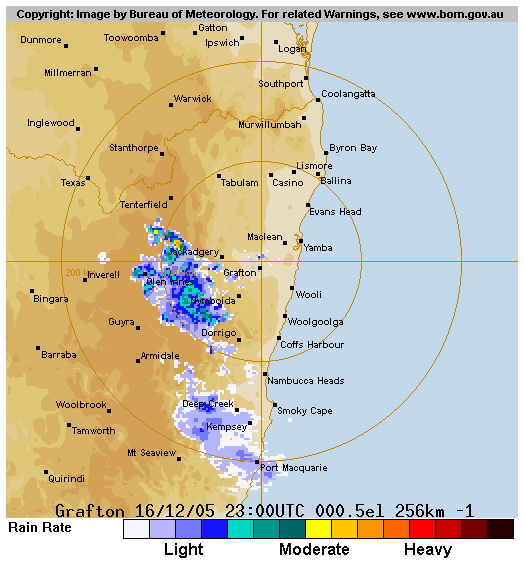

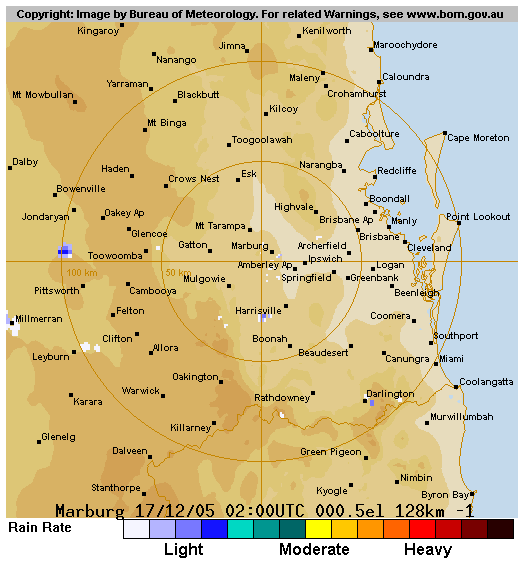

  • Grafton local scale loop 0000z to 0800z 17/12/2005 (11am to 7pm local time)
  • Grafton medium scale loop 2300z to 0900z 17/12/2005 (10am to 8pm local time)
  • Brisbane local scale loop 0200z to 0930z 17/12/2005 (1pm to 8.30pm local time)

    Satellite Images

    From Weatherzone and MODIS: Land Rapid Response System

    17/12/2005 0415z 3.15pm local

    17/12/2005 00z 17/12/2005 01z 17/12/2005 02z 17/12/2005 03z 17/12/2005 04z 17/12/2005 05z 17/12/2005 06z 17/12/2005 07z 11am to 6pm local

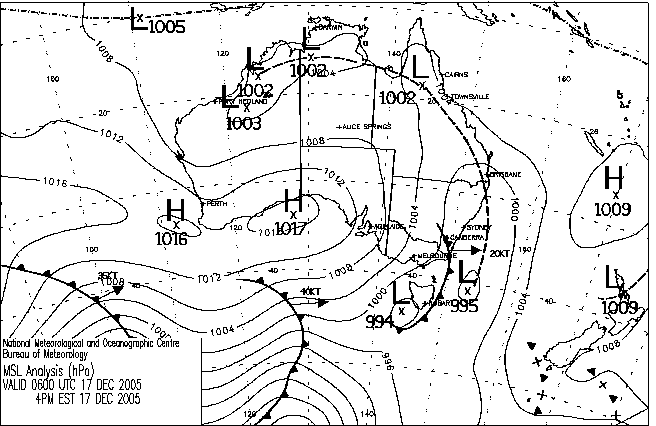

    Analysis Charts

    From Bureau of Meteorology

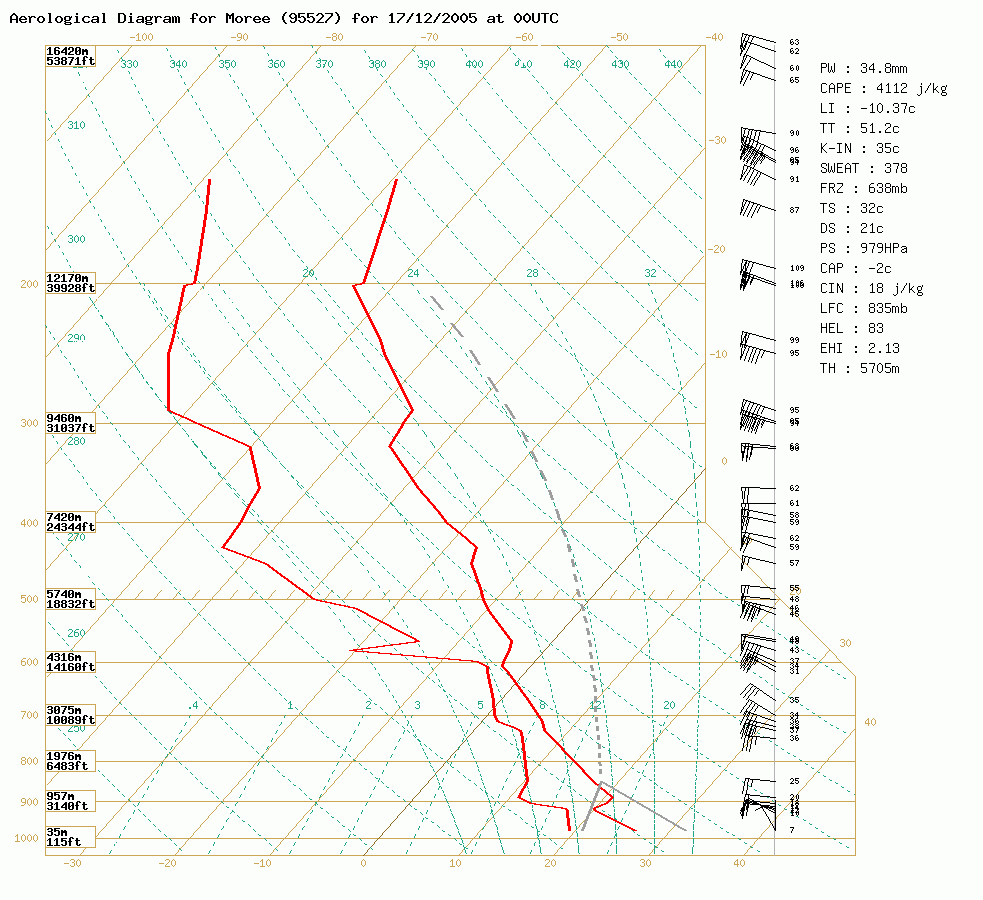

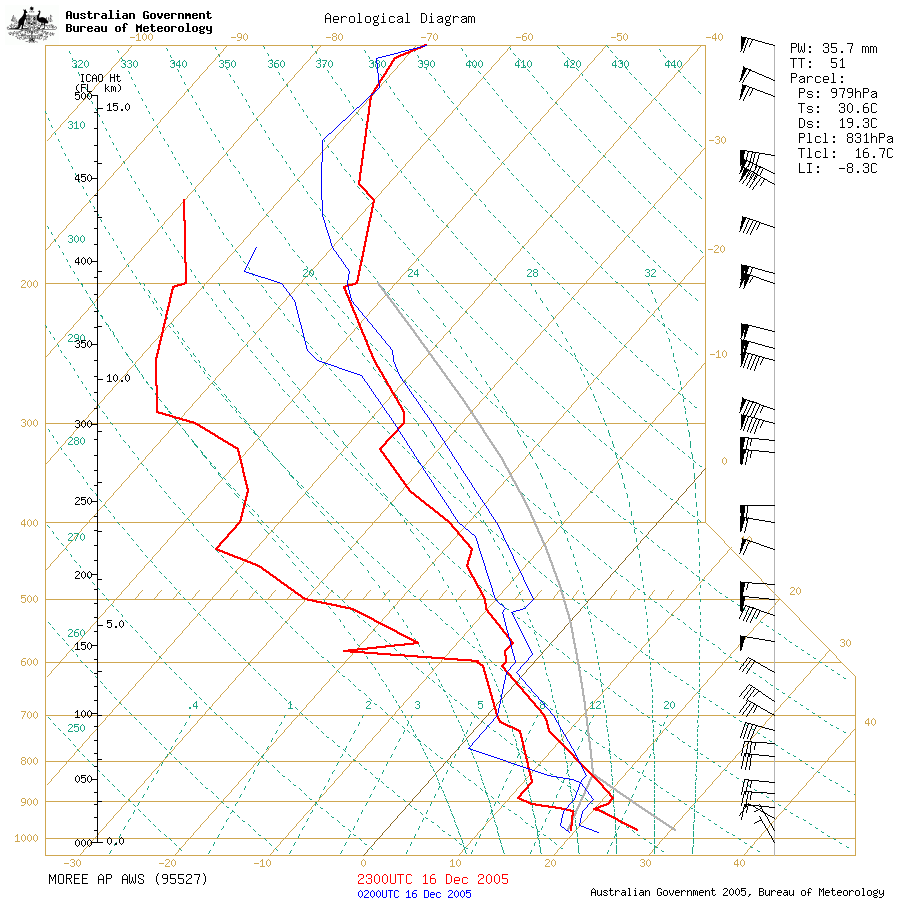

    Moree sounding at 9am 17/12 local (second one is modified to 32/21)

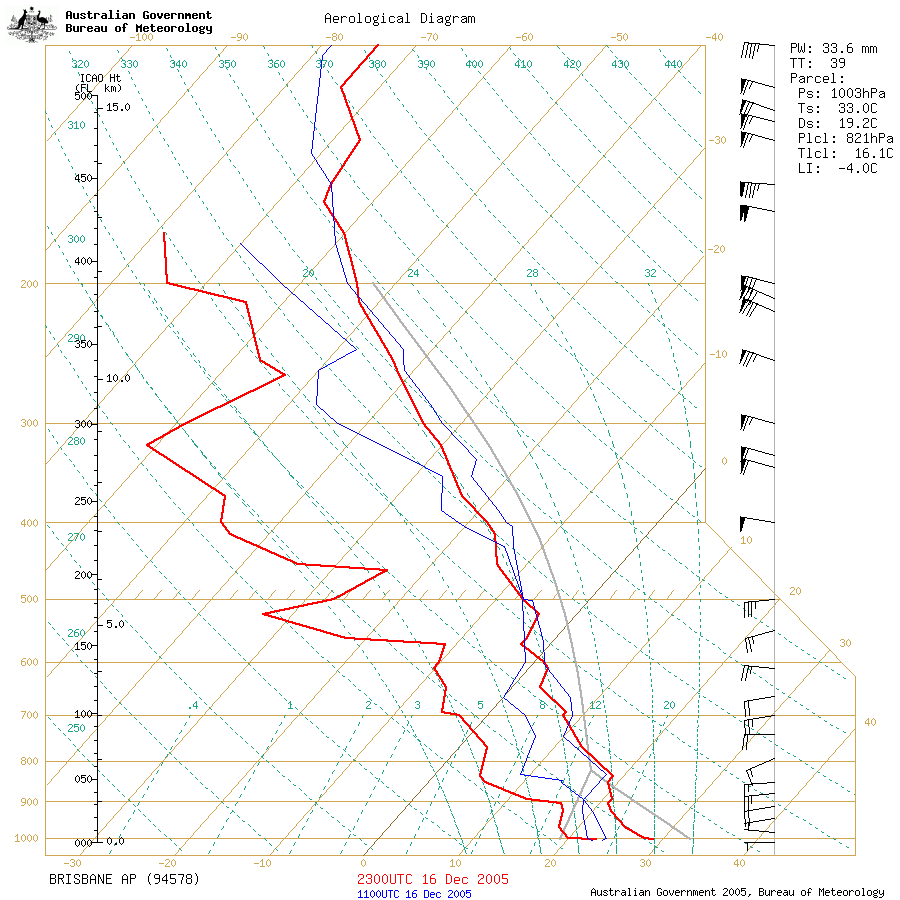

    Brisbane sounding at 9am 17/12 local

    17/12/2005 06z

    GFS Model Analysis

    From NOAA 17/12/2005 06z analysis

  • Liftex Index

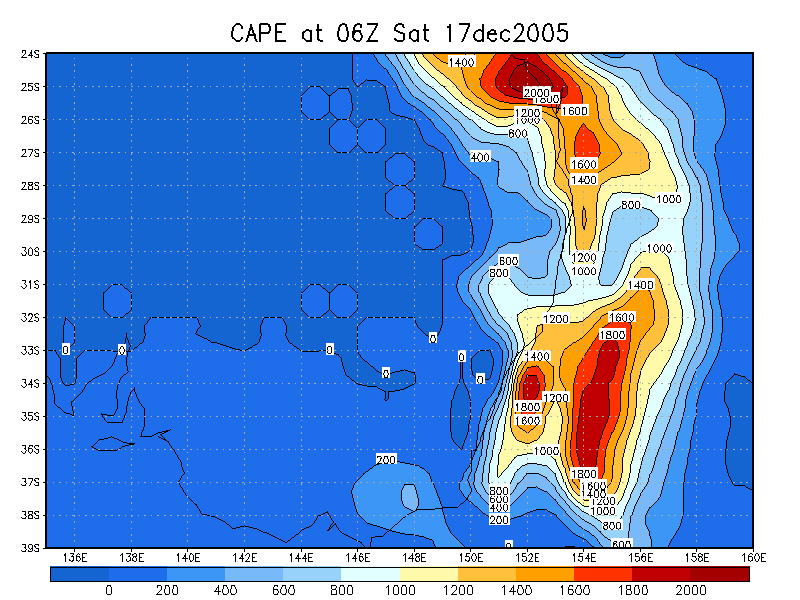

  • CAPE

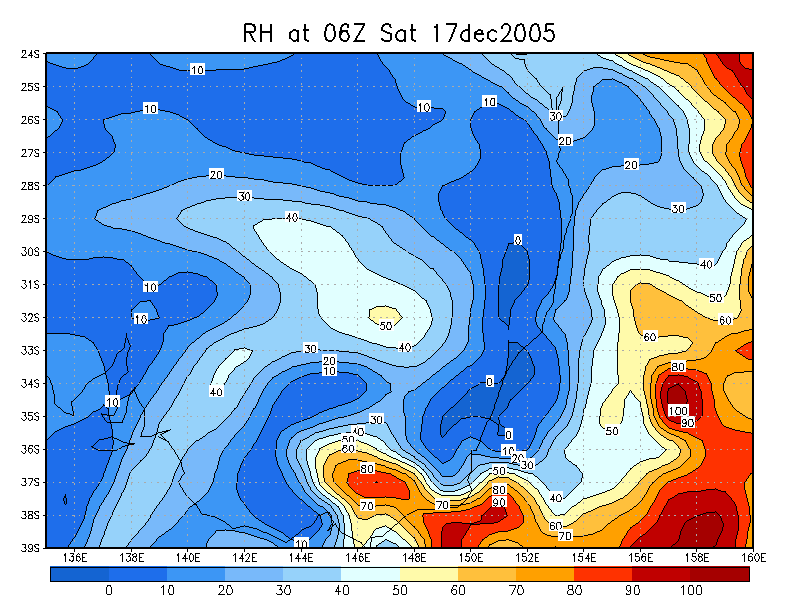

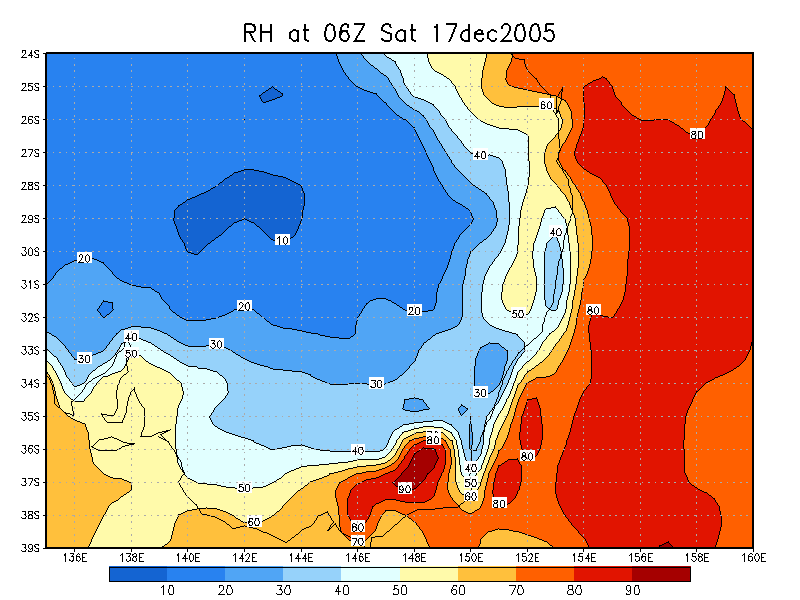

  • Relative Humidity surface

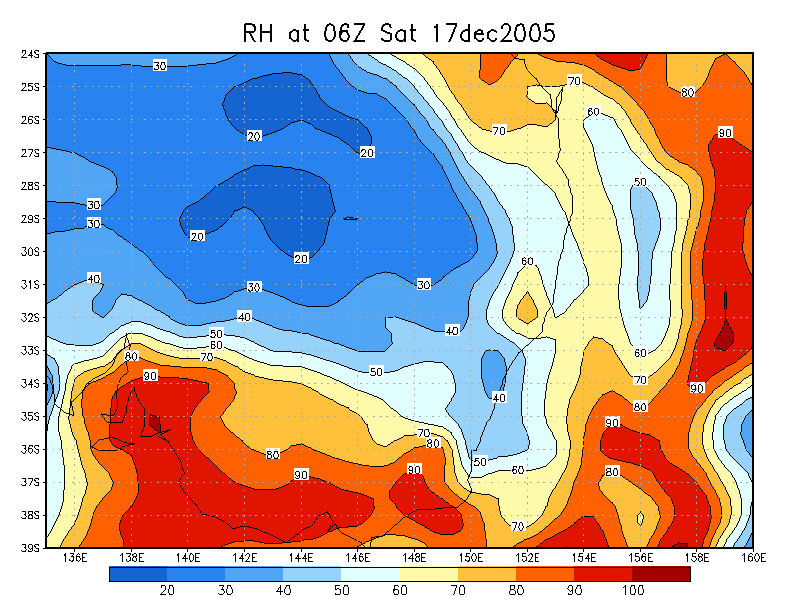

  • Relative Humidity 850 hPa

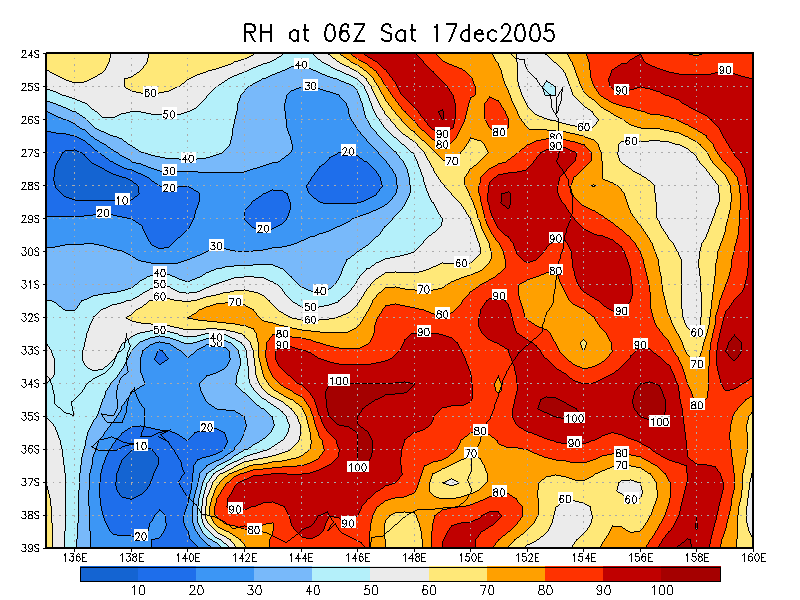

  • Relative Humidity 700 hPa

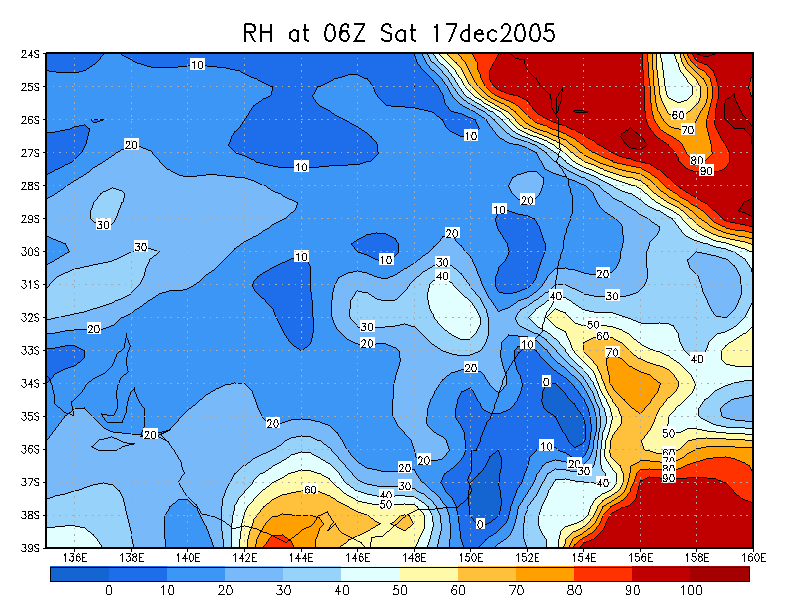

  • Relative Humidity 600 hPa
  • Relative Humidity 500 hPa
  • Relative Humidity 300 hPa

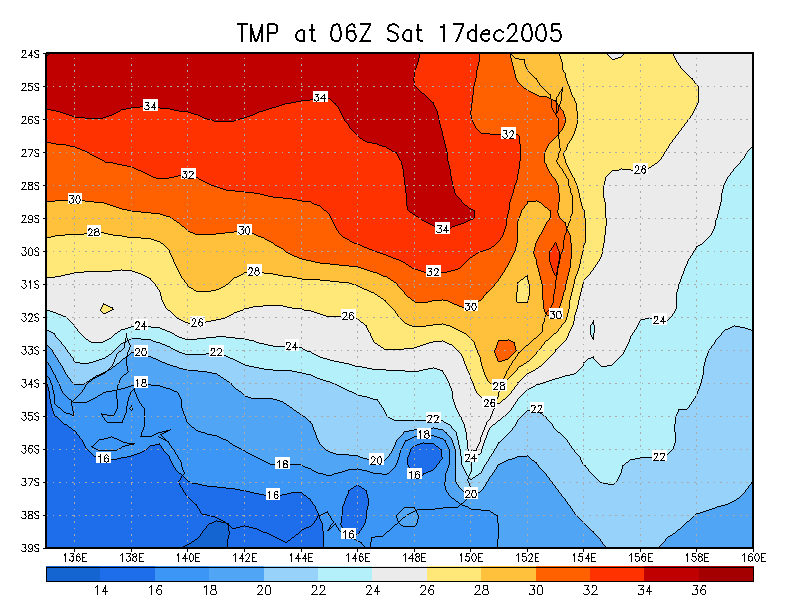

  • Temperature (C) surface

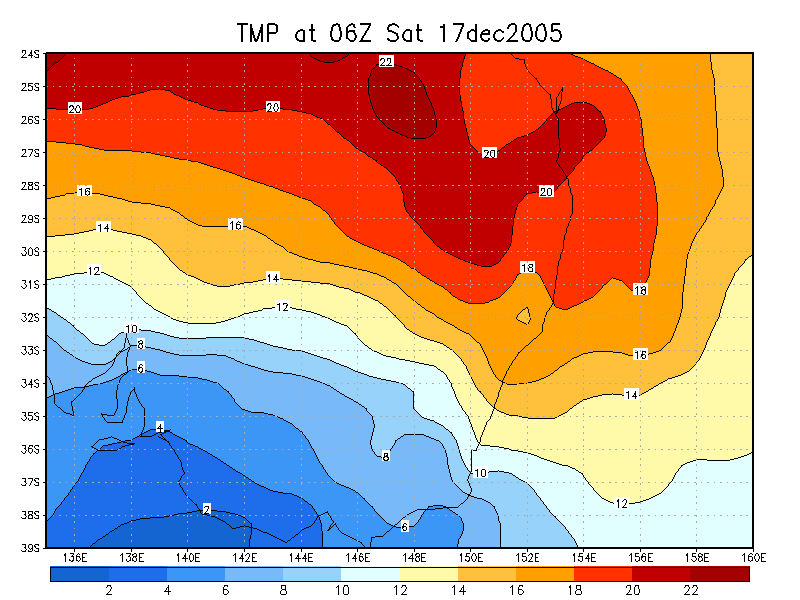

  • Temperature (C) 850 hPa
  • Temperature (C) 700 hPa

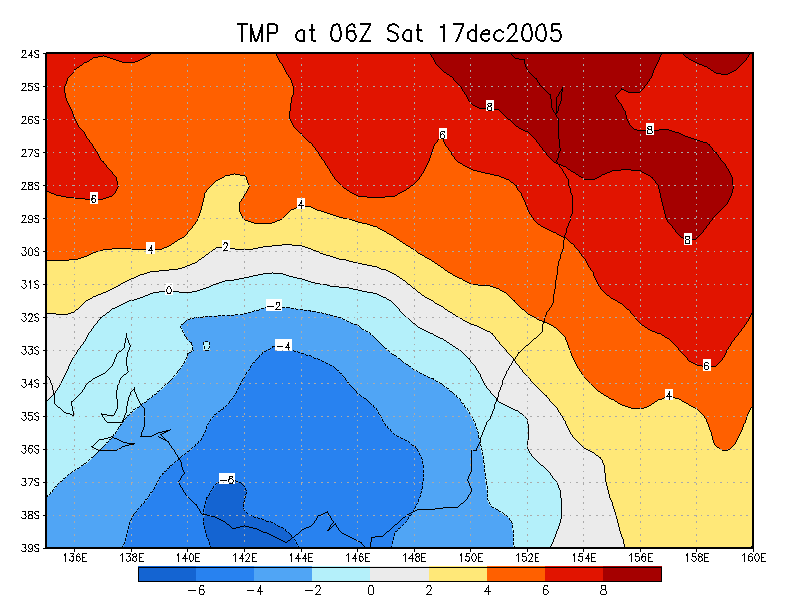

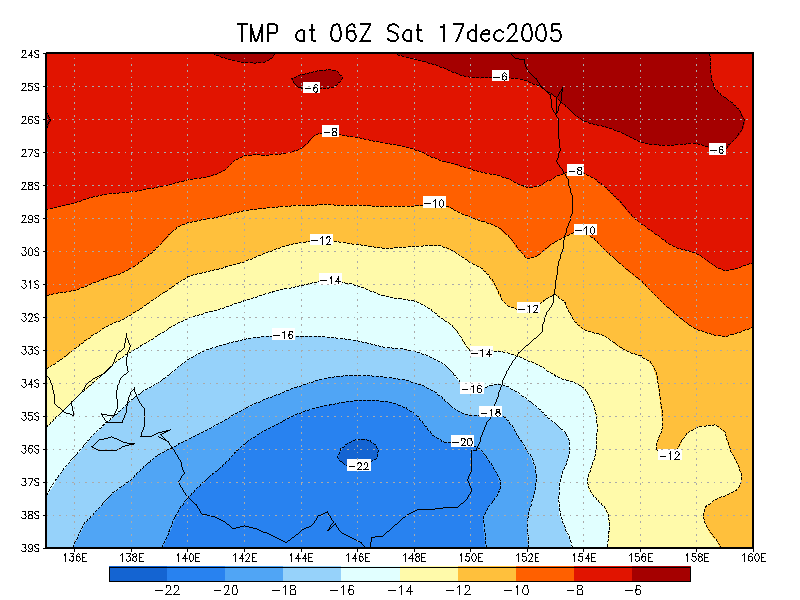

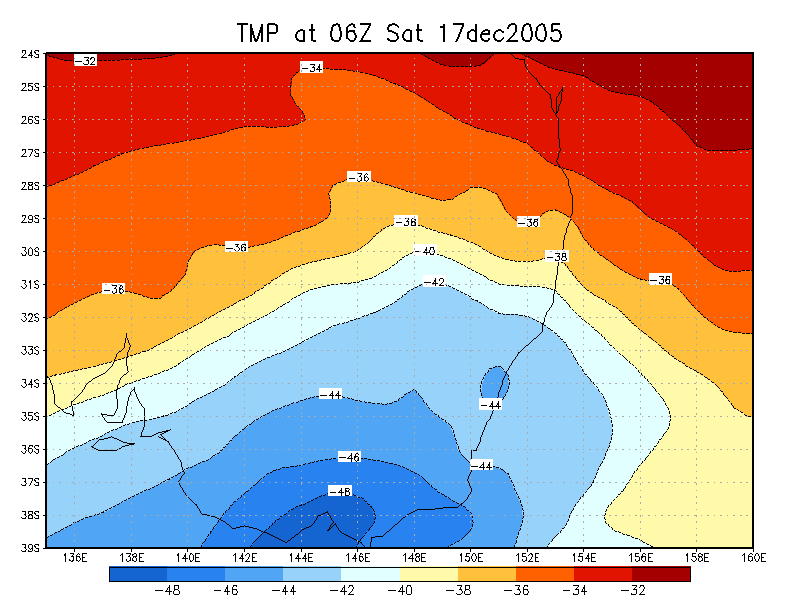

  • Temperature (C) 500 hPa
  • Temperature (C) 300 hPa

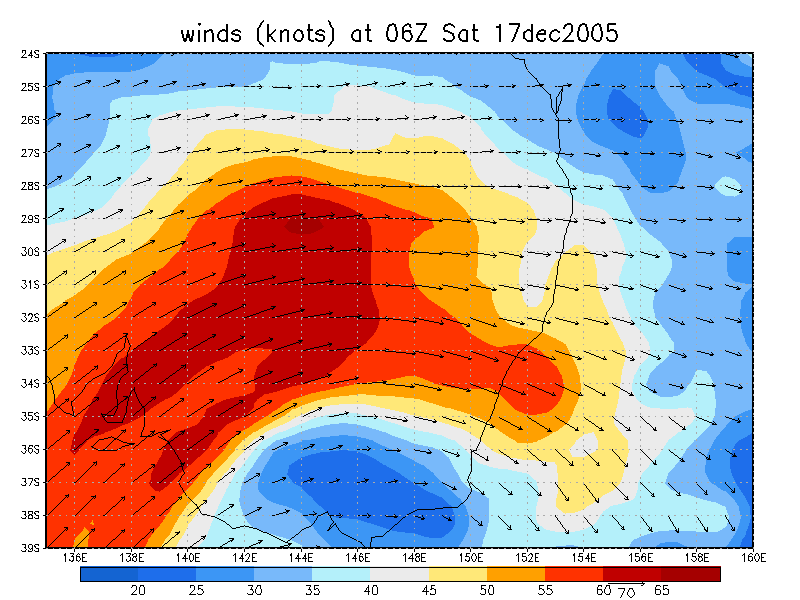

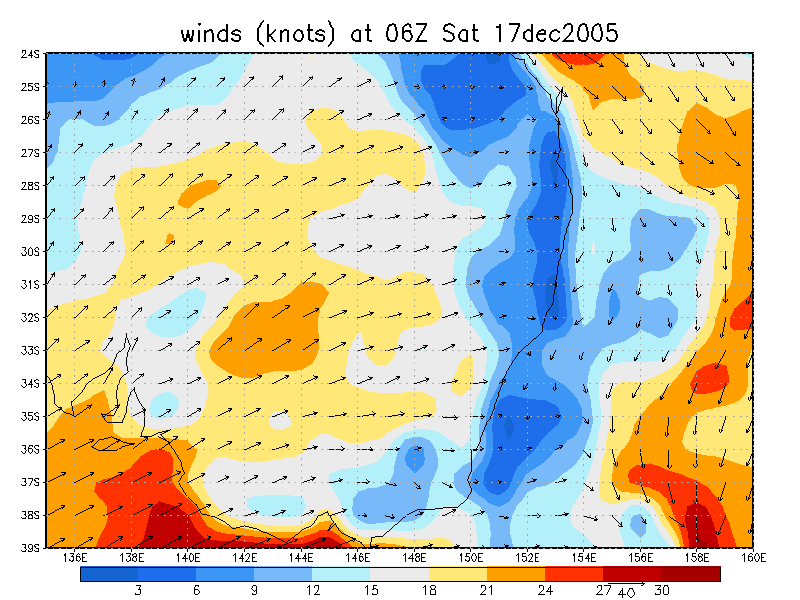

  • Winds (knots) surface

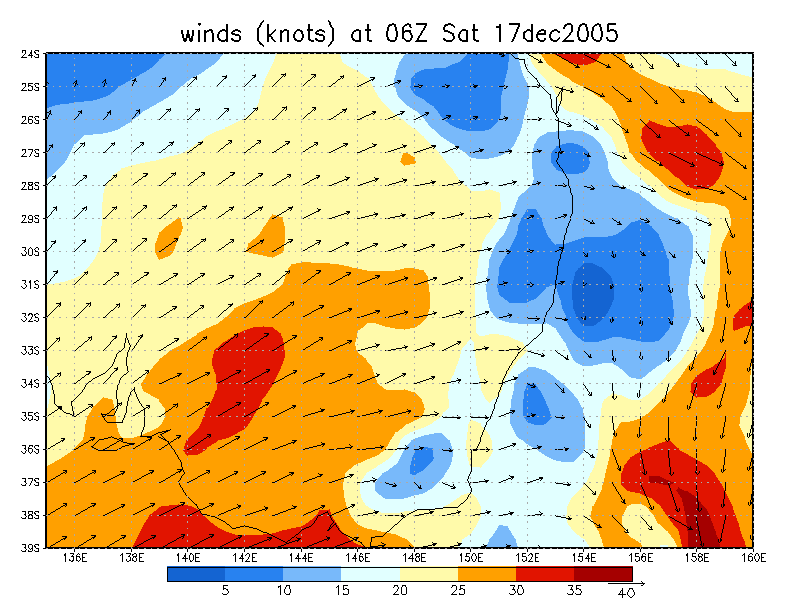

  • Winds (knots) 925 hPa

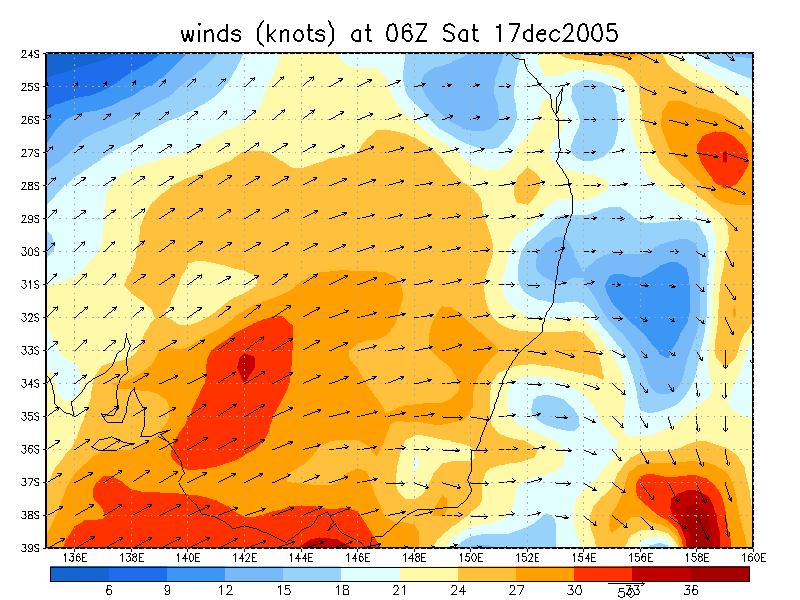

  • Winds (knots) 850 hPa

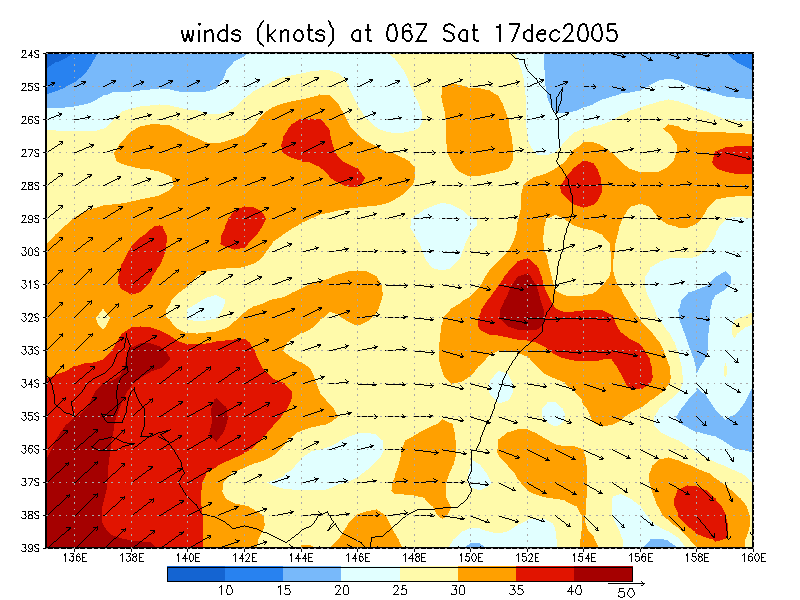

  • Winds (knots) 700 hPa
  • Winds (knots) 500 hPa

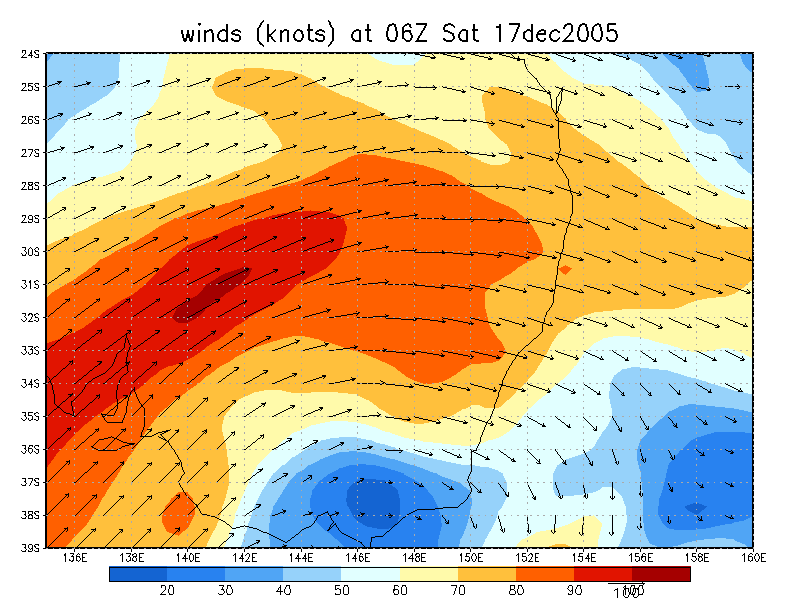

  • Winds (knots) 300 hPa

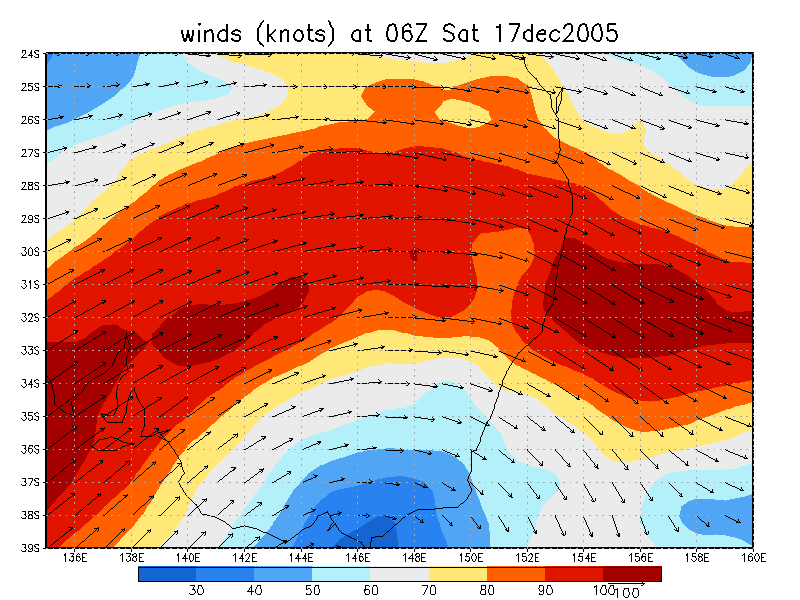

  • Winds (knots) 200 hPa
