4 Days of Thunderstorms usher in the New Year in NE NSW - including probable brief tornado: 29th December 2001 to 1st January 2002
storm chase reports by Dave Ellem and Michael Bath

  • All times are Australian Eastern Daylight Savings Time which is UTC + 11.
  • Click on images for larger view.
  • Move your mouse pointer over images for captions and times photos were taken.

    Saturday 29th December 2001

    By Dave Ellem

    I went up the coast to the NSW/QLD Border to visit my parents at Coolangatta who were holidaying up there with some friends of ours. I knew there was a good chance of storms up there and back home in Wollongbar so I took my camera along with me in the hope of catching some action (not telling the people I was travelling with I was hoping to bag a storm).

    After spending much of the morning shopping we got back to the apartment to have some lunch. When we arrived at the apartment Cj's had sprung up everywhere on the Border Ranges to the south and to the west as well. And it was only 12.00pm!! It was looking pretty good for later in the afternoon. After lunch we headed for a swim in the pool. While all the others were splashing around I had my eyes glued to the cell that had developed to the south. It didn't show any strong characteristics, just looked like a normal summer afternoon thunderstorm. This continued in an easterly direction and headed off out over the ocean. After that the sky to the south didn't look as active and all the larger Cj's began going up to the west and NW of where I was.

    McLeans Ridges 1.20pm looking NNE McLeans Ridges 1.30pm looking NNE

    At 2.30pm it was time to head back home to Lismore to drop off my friend to training. I fell asleep not long after we left (an annoying problem I have in cars!!!) and awoke in the town of Bangalow, 30km NE of Lismore. The sky was filled with clouds and I particularly noticed a cell that looked to be over the nightcap ranges. It was dumping a lot of rain but I couldn't see any lightning (not that I saw that much of the cell due to trees on the side of the roads etc). After watching NE of Lismore looking NW, ~3.45pm this I noticed a dark area on the horizon to the SW. It wasn't really too far away but I spent a good 5mins trying to decide whether it was a cell or just a shower. Then I realised the cirrus lined up with the dark area and clicked that it had to be a cell. I didn't get a really good view of this cell until I was bout 5km NE of Lismore. It was starting to precipitate although not over a large area. Lucky for me we were heading straight to it. We arrived at the athletics track in South Lismore at 4pm. Just as we got there it started to bucket down and the CG's began!! There were quite a few. I hadn't seen any at all until it actually hit us. The outflow wind was also rather strong, but it was the heavy rain grabbing my attention.

    After a quick update from Michael we decided to wait it out and after about 20mins the rain turned to a light shower and the sun returned. The cell was heading in a NE direction. After it cleared we headed back towards home but the water on the roads was amazing!!! It was gushing over roads in some parts. Branches were down in one area and I noticed what looked like a hail shaft/microburst to the NE of us. As it turned out some parts of North Lismore received strong winds that damaged buildings and also brought down trees, signs and fencing. Small hail was also reported. After I got home I logged on and found an STA had been issued.

    Lismore looking NE, ~4.30pm

    NSW Severe Thunderstorm Advice
    Issued at 1615 on Saturday the 29th of December 2001

    This advice affects people in the following weather districts:
    Northern Rivers [northern parts - north of about Casino and Evans Head]

    Thunderstorms are forecast within the advice area this afternoon and early
    evening. Some of these are expected to be severe bringing large hailstones,
    damaging winds and very heavy rain.

    Wollongbar looking N, 6.30pm

    Michael experienced some very close CG's near his house including one 'flang' that scared his whole family!!! Only 4.2mm was recorded there with <1mm recorded at my place.

    The following images were taken from McLeans Ridges, east of Lismore looking W to the cell that affected Lismore and N to another cell. Some video stills of lightning are also shown.

    McLeans Ridges 4.15pm looking W McLeans Ridges 4.25pm looking W McLeans Ridges 4.15pm looking N McLeans Ridges 4.20pm looking N

    McLeans Ridges 4.15pm looking N McLeans Ridges 4.15pm looking N McLeans Ridges 4.15pm looking N McLeans Ridges 4.15pm looking N McLeans Ridges 4.15pm looking N

    Cells continued to develop to the north of my place into the evening, but nothing close by. Just on sunset a nice tower went up capped with pileus. A nice way to end the day!! I was very excited that night about the prospects that the next day held. In fact I had a bit of trouble sleeping!!

    McLeans Ridges 5pm looking NE McLeans Ridges 7.10pm looking N

    Sunday 30th December 2001

    By Michael Bath

    The setup for the 30th was pretty good, a broad area of Lifted Index in the -6 to -8 range, high moisture in the lower levels and some dry air aloft. Winds showed backing from NE to WSW though quite light in the lower atmosphere, but up to 40 knots by 500hPa and a 100 knot jet at 200hPa. The wind profile suggested storms would generally move towards the east today, with stronger cells likely to veer towards the NE. There was a cap, but high surface temperatures prevented this being a problem. An enclosed low over central NSW was analysed on the MSL chart with a broad trough extending NNW well into Queensland. A weak high was positioned east of NSW/Queensland border maintaining a good moisture flow.

    As often occurs, the first convection was evident on radar on the Dorrigo Plateau from around 11.30am, but encouragingly also quickly developed near Tenterfield to the west. About 12.30pm the BoM issued an STA for the Mid North Coast, Northern Rivers and eastern half of the Northern Tablelands.

    Being a Sunday the Northern Rivers chasers of Dave Ellem, Rodney Wallbridge and me were all available. I picked up Dave and called Rodney to meet us at a vantage point just N of Casino.

    N of Casino 1.55pm looking WSW N of Casino 1.57pm looking WSW N of Casino 1.58pm looking WSW N of Casino 2.02pm looking WSW N of Casino 2.13pm looking WSW

    By the time we arrived there just before 2pm a strong cell had developed east of Tenterfield and was tracking ENE towards us. A very impressive rain free updraft region was established on the N and NE side of the cell, with several very nice lowerings or wall cloud features, some probably reaching the ground along the hills in the Richmond Range (about 40km to our W). At the same time and extensive line of convection formed from SW to S, nicely contrasted behind the anvil of the storm to our W.

    N of Casino 2.07pm looking S

    New information April 2003

    The following sequence of photographs were taken by Dave Ellem every 30 seconds or so apart and show what appears to be a tornado touch down on the left of the wall cloud region. An MPG movie of the images (282kb) shows the dramatic effect more clearly. At the time this series of photos were taken (from 1.58pm - 0300z image on radar) the storm began to veer significantly left, after cell splitting occurred 30 minutes earlier.

    N of Casino looking WSW N of Casino looking WSW N of Casino looking WSW N of Casino looking WSW N of Casino looking WSW N of Casino looking WSW N of Casino looking WSW N of Casino looking WSW N of Casino looking WSW

    We remained at the location N of Casino for some time, watching as the cell grew larger and moved closer. Several microbursts were observed as the now obviously severe storm edged closer. Shortly after 2.30 it was apparent to me that the cell was now moving towards the NE or even NNE, and would likely pass over Kyogle, 25km N of us.

    N of Casino 2.32pm looking W N of Casino 2.38pm looking W N of Casino 2.38pm looking W N of Casino 2.43pm looking S

    N of Casino 2.35pm looking ENE N of Casino 2.43pm looking ENE

    The storm was quite close by 2.45pm, the core about 10km to our W. It was still producing microbursts towards the north and had a huge rain free base which spread out towards the NE. The anvil was thick and extending way off to the E. We took off up the Summerland Way towards Kyogle to maintain a good position. It was very easy to keep ahead of this cell - it was propagating quite slowly. About 10km S of Kyogle we stopped on a farm road off the Highway to capture the scene. Very intense precipitation occurred, again with microbursts and some scuds near us and into the lovely rippled rain free area. Visible CGs were not that frequent, mainly near the precipitation core, but the rumble of thunder was quite exciting.

    10km S of Kyogle 3.03pm looking W 10km S of Kyogle 3.07pm looking W 5km S of Kyogle 3.12pm looking W

    We kept just ahead of the storm, arriving in Kyogle about 3.20pm well before the storm did. We observed the microbursts heading our way with many close CGs ahead of this. Rodney did not want to get any hail dents, I didn't care as I already had some, but we parked under a strong looking shop awning to be safe. It seemed like ages for the storm to arrive, and by the time it passed Kyogle had in fact weakened. It was a bit of an anticlimax to only experience some strong squally gusts and heavy rain after anticipating hail and violent winds - though I'm sure the people of Kyogle were happy! We headed back S while the cell seemed to re-intensify NW of Kyogle.

    Kyogle 3.30pm looking SSW

    Back at the spot N of Casino, we again observed microbursts from the same storm, this time spreading out the rear flank towards the SW. Rodney heard via his radio network that a lot of hail has fallen at Mallanganee, which is about 40km WSW of Casino - it must have occurred there just after 2pm.

    N of Casino 4.20pm looking NNW N of Casino 4.24pm looking NNW

    Shortly before 5pm a roll cloud type feature had formed to our SE. It was certainly interesting but we had not observed the convection developing behind it due to other cloud in the way. We all decided to head towards the formation as it was on the way home anyway. After just a few ks it was obvious storms were developing along an E-W line behind the roll cloud. A magnificent inflow region of the eastern side of the cell had formed with powerful CGs punching through this rain free area. It was beautifully contrasted. We headed towards it but it soon became totally outflow dominated as the cell dropped its precipitation. We drove into the rain with a few nearby CGs then called the chase over at about 5.40pm.

    N of Casino 5.04pm looking NNW E of Casino 5.20pm looking S

    A few video stills with lightning captured during the chase:

    10km S of Kyogle 10km S of Kyogle Kyogle Kyogle Kyogle E of Casino

    Monday 31st December 2001

    By Michael Bath


    Storms passed through the region between 3 and 5am. I was awoken by thunder at 4am and observed lightning to the N and NW, but no rain fell at my location. It was later reported that extensive thunderstorm activity had passed through Brisbane with falls up to 100mm in some parts. I had observed those storms passing out to sea after dawn to the far N.

    The setup for today was a bit messy, high CAPE, some decent turning of the winds, but they were fairly light. It was also very moist throughout the atmosphere. I expected some high precipitation cells to move through the Northern Rivers later.

    McLeans Ridges 12.40pm looking NW McLeans Ridges 3.30pm looking NW McLeans Ridges 4.05pm looking NW

    Thunderstorms formed early west of Warwick in Queensland and tracked towards the E. More extensive activity formed along the Northern Tablelands by about 1.30pm, again heading generally eastward. A couple of cells made it to "pink" on radar and veered slightly NE but nothing really got going. I observed a cell off to the W from 3pm onwards, it developed a shelf cloud type feature on the leading edge, but this eventually collapsed as the storm seemed to stall - it had in fact weakened and new development kept forming on a line NW of it. After expectations of a decent fall of rain, just a few spits was a big disappointment.

    Tuesday 1st January 2002

    By Michael Bath

    A hot day with fairly extensive cirrus and cirrostratus to the N. Conditions for storm development were marginal with a strong cap, which ended up being stronger than forecast.

    Cumulus congestus formed early afternoon to the W and extended down towards the Clarence region. Dave, Rodney and I headed out for observations at a nearby lookout hoping something substantial would form. We really needed activity to form more to the W and NW as the steering flow was towards the ESE.

    McLeans Ridges 12.35pm looking NNE Tregeagle 2.50pm looking S

    A line of high based low topped cells did get established about 60km S of us, near the coast. An STA was issued by the BoM but none of this activity really kicked off. Some other very weak cells did eventually form to the W, but collapsed near sunset.

    Temperatures were up to 40 in the Clarence Valley. I suspect this was enough to partially break the cap where the weak storms formed on this day.


    From Bureau of Meteorology.

  • Grafton local scale loop 0230z to 0640z 29/12/2001 (1.30pm to 5.40pm local)
  • Grafton medium scale loop 0200z to 0910z 29/12/2001 (1.00pm to 8.10pm local)

  • Grafton local scale loop 0030z to 0850z 30/12/2001 (11.30am to 7.50pm local)

  • Grafton local scale loop 0120z to 0550z 31/12/2001 (12.20pm to 4.50pm local)
  • Grafton medium scale loop 0030z to 0550z 31/12/2001 (11.30am to 4.50pm local)

  • Grafton local scale loop 0300z to 0830z 01/01/2002 (2.00pm to 7.30pm local)

    Satellite Images

    From Bureau of Meteorology.

  • GMS-5 Infrared [03z 29/12/2001][05z 29/12/2001][06z 29/12/2001][09z 29/12/2001]
  • GMS-5 Infrared [00z 30/12/2001][03z 30/12/2001][05z 30/12/2001][06z 30/12/2001][09z 30/12/2001]
  • GMS-5 Infrared [00z 31/12/2001][03z 31/12/2001][05z 31/12/2001][06z 31/12/2001][09z 31/12/2001]

    From CSIRO Marine Research.

  • NOAA Hires Infrared [0403z 30/12/2001]

    Analysis Charts

    From Bureau of Meteorology.

  • BoM MSL [06z 29/12/2001]
  • BoM MSL [06z 30/12/2001]
  • BoM MSL [06z 31/12/2001]
  • BoM MSL [06z 01/01/2002]

    Weather Webcam

  • 30/12/2001 11:23 to 16:23 (when power blackout occurred - 1.23mb in MPG format)

    AVN Model Analysis

    From NOAA 30/12/2001 06z run analysis

  • Liftex Index
  • CAPE
  • Relative Humdity surface
  • Relative Humdity 850 hPa
  • Relative Humdity 700 hPa
  • Relative Humdity 600 hPa
  • Relative Humdity 500 hPa
  • Relative Humdity 400 hPa
  • Relative Humdity 300 hPa
  • Temperature (C) surface

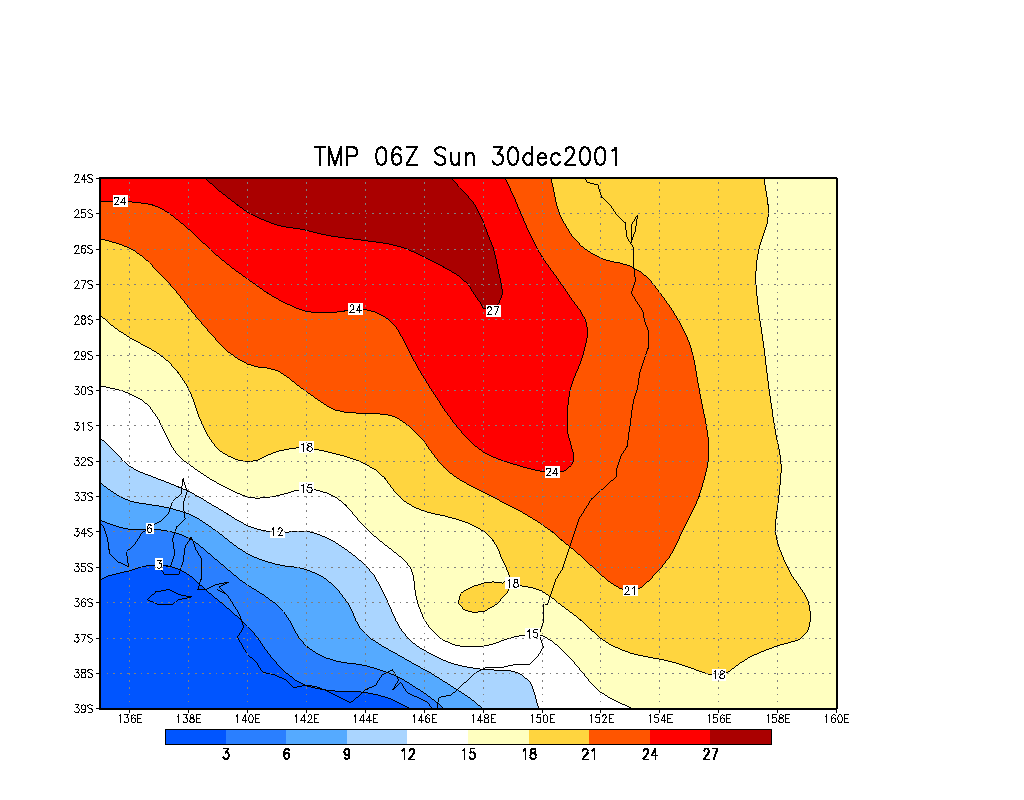

  • Temperature (C) 850 hPa
  • Temperature (C) 700 hPa
  • Temperature (C) 500 hPa
  • Temperature (C) 300 hPa
  • Winds (knots) surface
  • Winds (knots) 925 hPa
  • Winds (knots) 850 hPa
  • Winds (knots) 700 hPa
  • Winds (knots) 500 hPa
  • Winds (knots) 300 hPa
  • Winds (knots) 200 hPa
